PLUMBING MACHINES & TOOLS
THREADING MACHINES

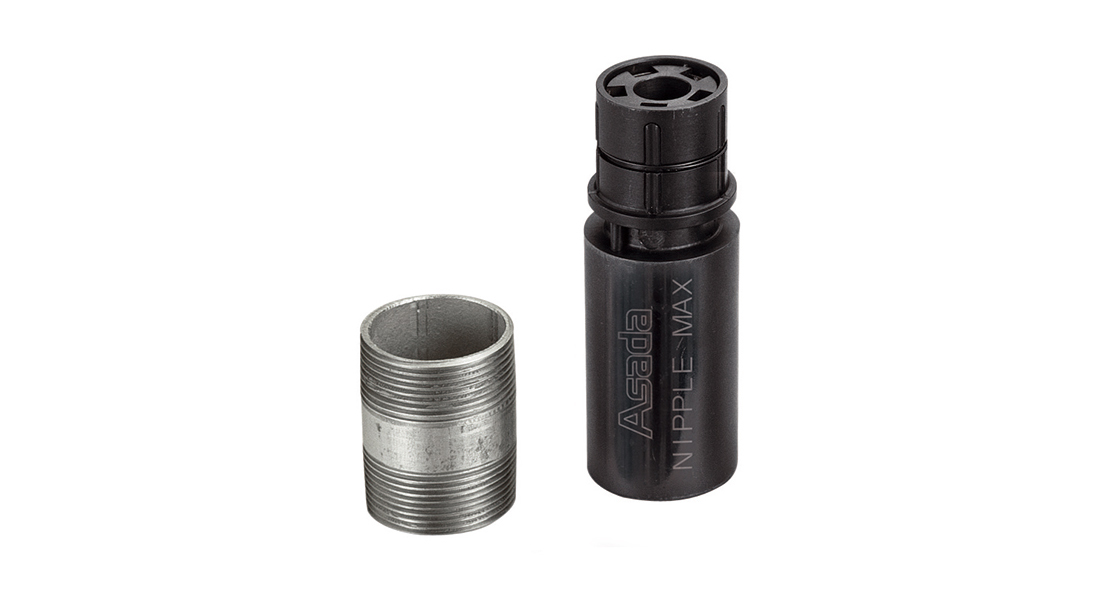

Nipplemax
- Optional accessories
For making short nipples from end materials
Easy set up and making nipples in any length
Can be used with other brands threading machines
When using Nipplemax, turn on the threading machine while pushing dies toward the material.
Not applicable to inner lining pipes and stainless steel pipes.
SPECIFICATIONS
| Item | NIPPLEMAX SET 3 (1/2", 3/4") | NIPPLEMAX 1/2" | NIPPLEMAX 3/4" | NIPPLEMAX 1" | NIPPLEMAX 1.1/4" | NIPPLEMAX 1.1/2" | NIPPLEMAX 2" | NIPPLEMAX 2.1/2" | NIPPLEMAX 3" | NIPPLEMAX 3.1/2" | NIPPLEMAX 4" |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code No. | 36003 | 36100 | 36110 | 36120 | 36130 | 36140 | 36150 | 36160 | 36170 | 36180 | 36190 |
| Applicable internal pipe diameter | - | 15.5mm< >17.3mm | 20mm< >22.4mm | 25.5mm< >29.2mm | 34mm< >37mm | 40mm< >43.5mm | 51mm< >54.5mm | 66.5mm< >69.6mm | 79.5mm< >83.2mm | 92.5mm< >96.8mm | 103.5mm< >107.8mm |
| Standard accessories | NIPPLEMAX (1/2", 3/4"), CASE |
