PLUMBING MACHINES & TOOLS
THREADING MACHINES

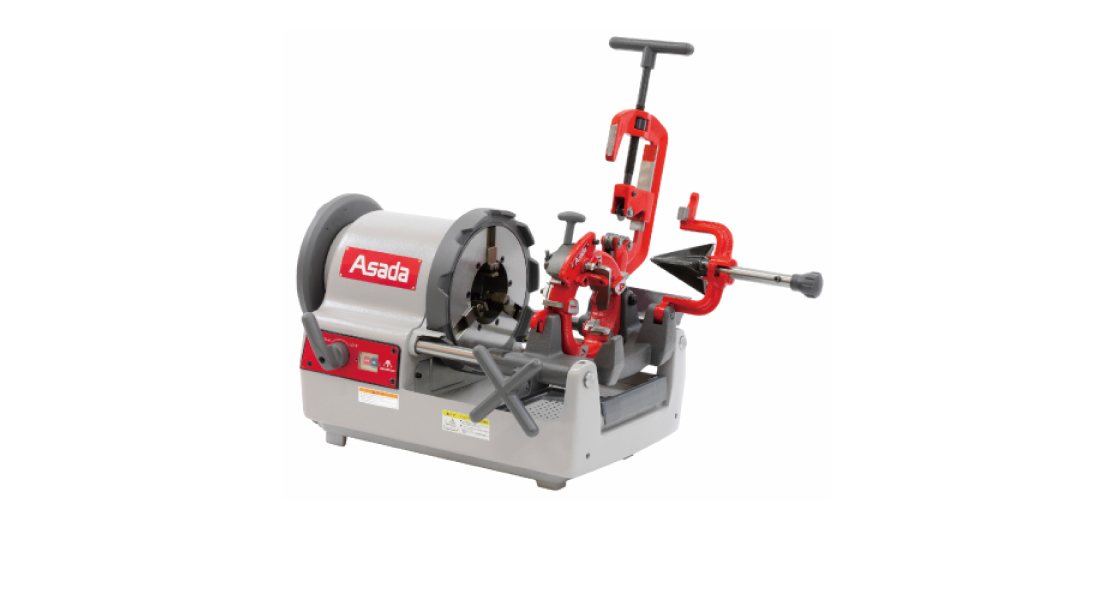

BEAVER 100 Global model pursuing leak-free threads
- 4"
Pipe：PT1/4"~4" (PT1/4"～3/8" ※With optional accessories)
Bolt：W3/8"～2"・M10～42 ※With optional accessories
Conduit：C19～75・PF1/2"～3" ※With optional accessories
SPECIFICATIONS
| Item | Code No. | Weight | Standard accessories | Threading capacity | Spindle speed | Motor |
|---|---|---|---|---|---|---|
| BEAVER 100 BSPT AUTO | BE1AS | 105kg | BEAVER AUTO DIE-HEAD： 1/2"～2", 2½"～4" DIES： BE1/2"～3/4", BE1"～2", AT2½"～4" THREADING OIL WHITE 4L (1CAN) | PT1/4"～4" | 45・18min－1（2 stage speed) | 220-240V, 1,140W |
| BEAVER 100 NPT AUTO | BE1AN | 105kg | BEAVER AUTO DIE-HEAD： 1/2"～2", 2½"～4" DIES： BE1/2"～3/4", BE1"～2", AT2½"～4" THREADING OIL WHITE 4L (1CAN) | PT1/4"～4" | 45・18min－1（2 stage speed) | 220-240V, 1,140W |
Voltage made to order.
FEATURES
Accurate threading
Die-head with automatic profiling system and high durable dies.
Slip-free chucking
Easy-to-grip outer ring and wider jaws grab material firmly.
High power motor
Motor rotation is hard to drop even under poor electric condition.
Superior sharpness & durability
Cutter & reamer blade are designed with most suitable shape.
High durability spindle
Supported by high precision ball bearing. (Hammer chuck side only)
Stable oil supply
High capacity pump maintains sufficient oil flow even at low rotation.
