ANGLE MACHINE 75
- 75×75×6mm
- V notch
- Angle bar bender
- Corner cut
- Edge cut
- Optional item Puncher
Can process bending, V notch, corner cut without changing tools.
Applicable to stainless steel angle bar up to 75×75×6mm (with stainless steel model)

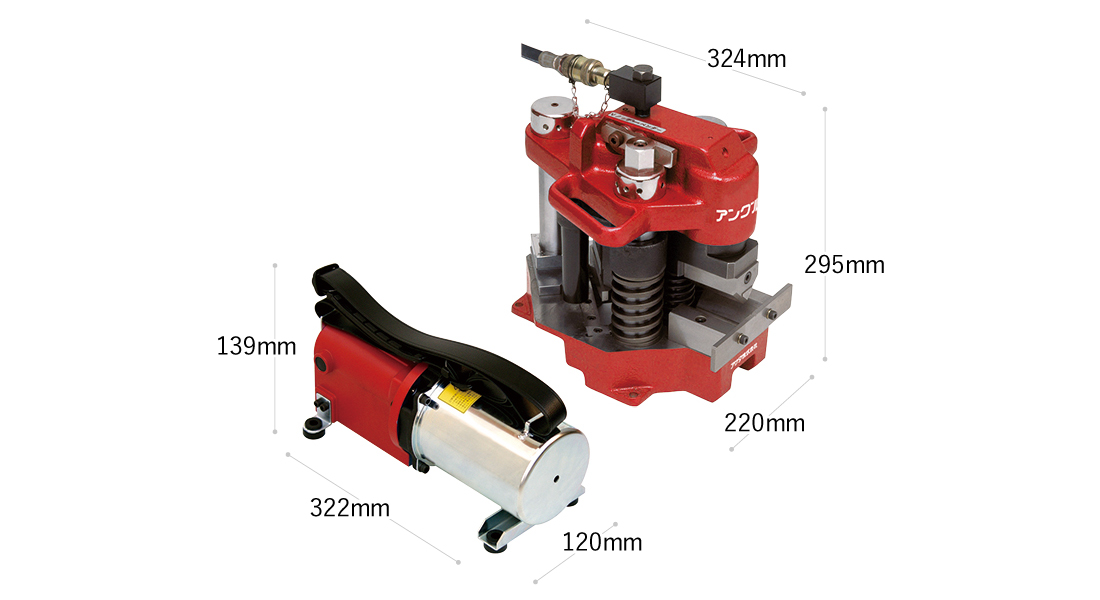

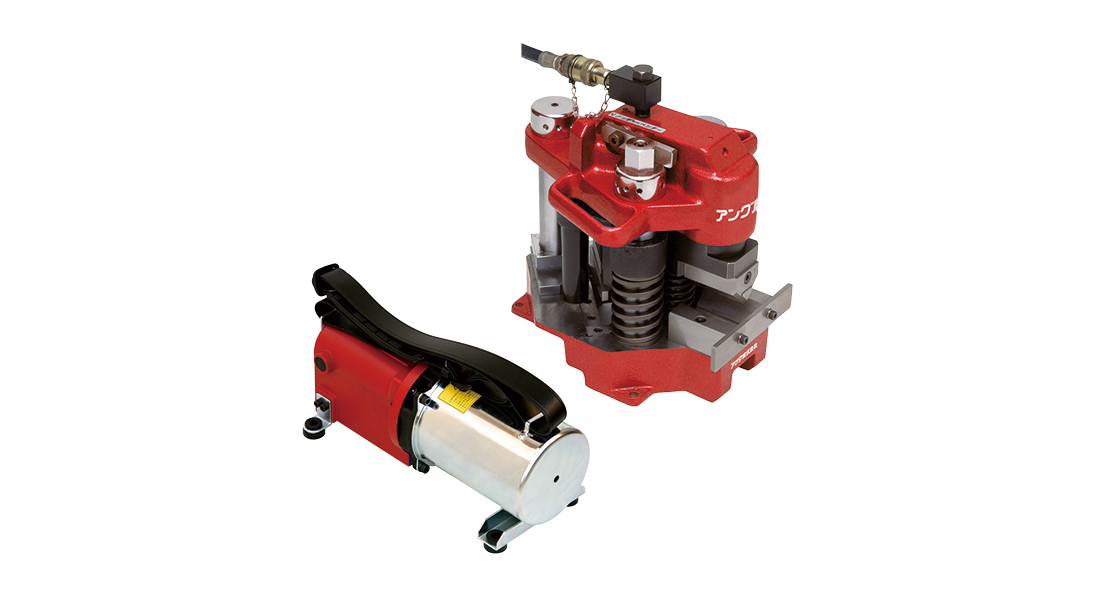

Main unit and hydraulic pump unit are separated for easy transport.
Min bend: 200mm corner
SPECIFICATIONS
| Item | ANGLE MACHINE 75 with HAND SWITCH | ANGLE MACHINE 75 with FOOT SWITCH | ANGLE MACHINE 75 BODY UNIT | ANGLE MACHINE 75 BODY UNIT for STAINLESS STELL |
|---|---|---|---|---|
| Code No. | NZ754 | NZ755 | NZ761 | NZ785 |
| Applicable material | Steel | Steel | Steel | Steel, Stainless steel |
| Bending capacity | SS400：75×75×6mm／SUS304：75×75×6mm(※) | SS400：75×75×6mm／SUS304：75×75×6mm(※) | SS400：75×75×6mm／SUS304：75×75×6mm(※) | SS400：75×75×6mm／SUS304：75×75×6mm(※) |
| Output | 17 t（Bender）・23 t（V notch） | 17 t（Bender）・23 t（V notch） | 17 t（Bender）・23 t（V notch） | 17 t（Bender）・23 t（V notch） |
| Stroke | 30mm | 30mm | 30mm | 30mm |
| Weight | 50kg | 50kg | 50kg | 50kg |

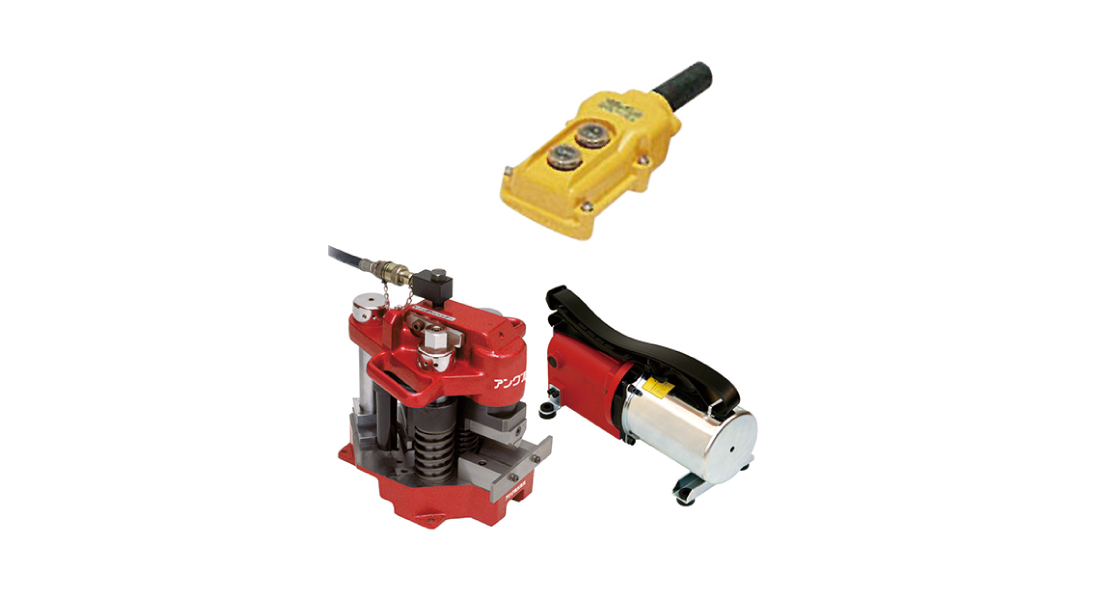

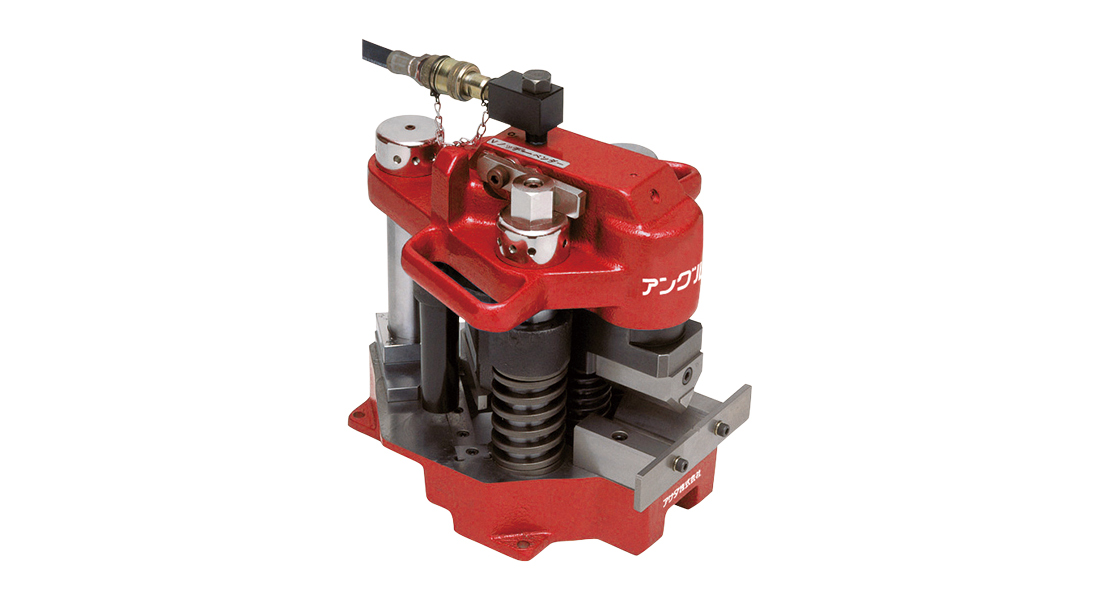

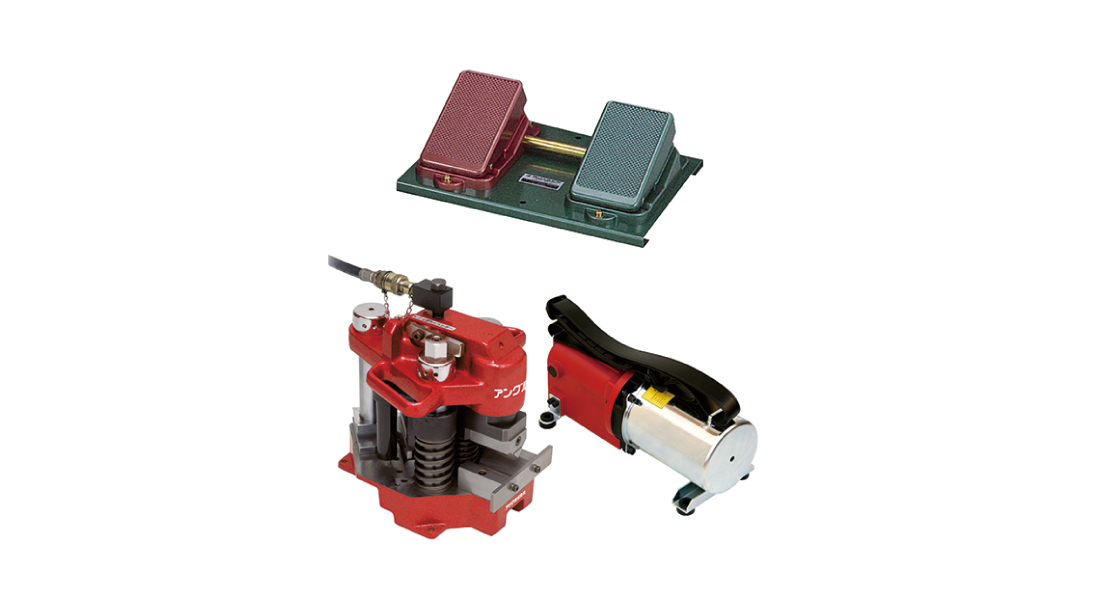

| Standard accessories | MAIN UNIT（V notch, Bender）, HYDRAULIC PUMP UNIT FL, HAND SWITCH | MAIN UNIT（V notch, Bender）, HYDRAULIC PUMP UNIT FL, FOOT SWITCH | MAIN UNIT（V notch, Bender） | MAIN UNIT（V notch, Bender） |
For material thickness 3・4mm, V NOTCH KIT t3:Code No. NZ779 is necessary.
Voltage made to order.
FEATURES
Can process 6 different works with standard accessories

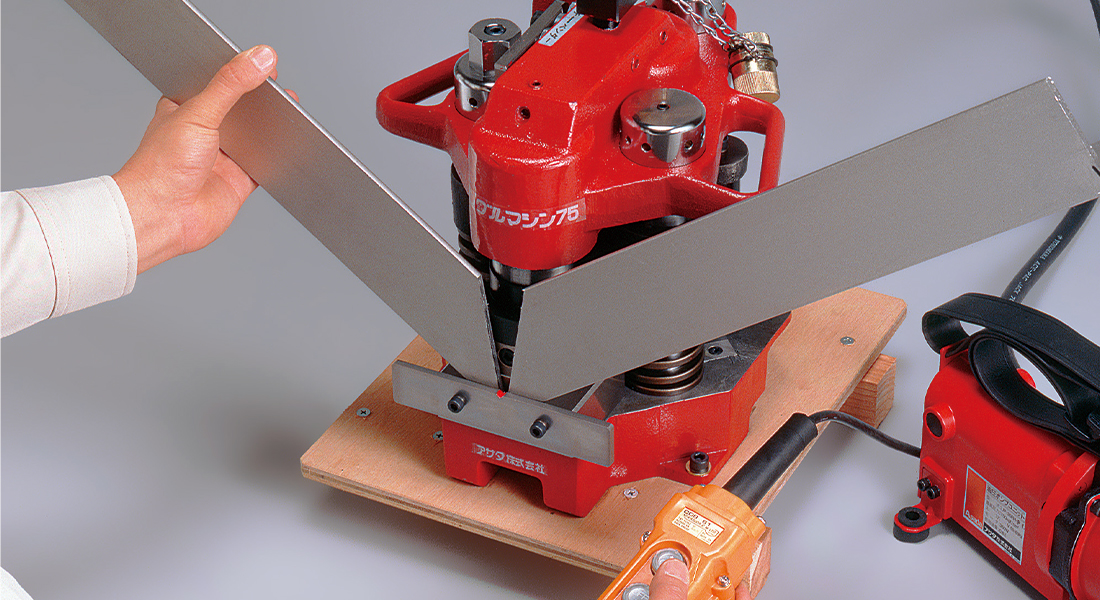

V notch 90°
Can process 6 different works with standard accessories

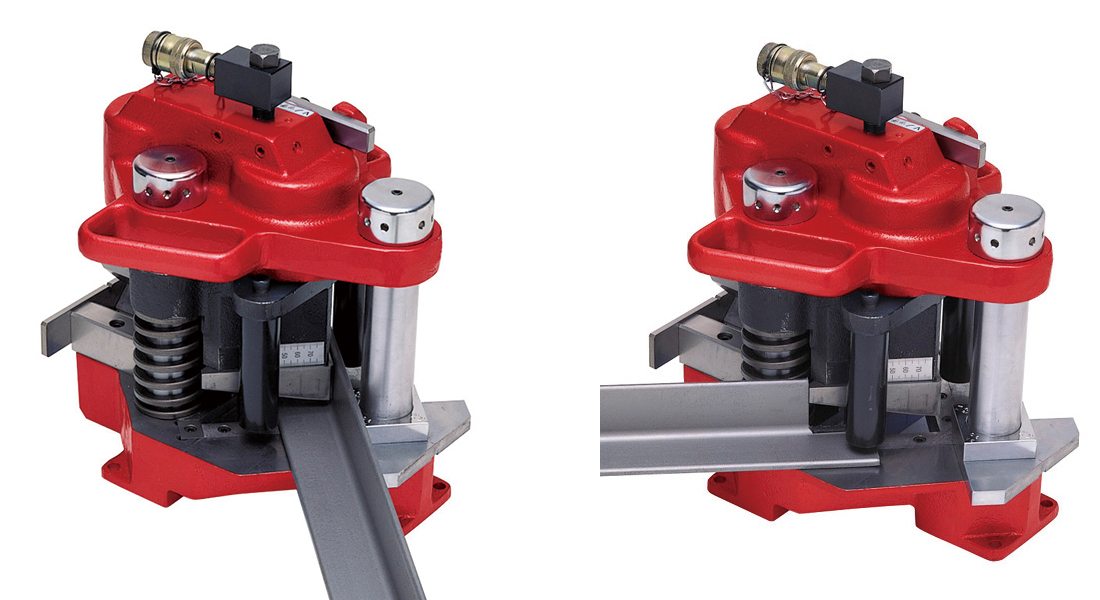

Angle bar bender. ※ Min bend: 200mm corner.
Can process 6 different works with standard accessories
Corner relief.
Can process 6 different works with standard accessories
Corner cut 45°.
Can process 6 different works with standard accessories
Corner cut 90°.
Can process 6 different works with standard accessories
Edge cut.
Can process 6 different works with standard accessories
Puncher (with optional accessories)
