HVAC TOOLS
REFRIGERANT RECOVERY & RECLAIM

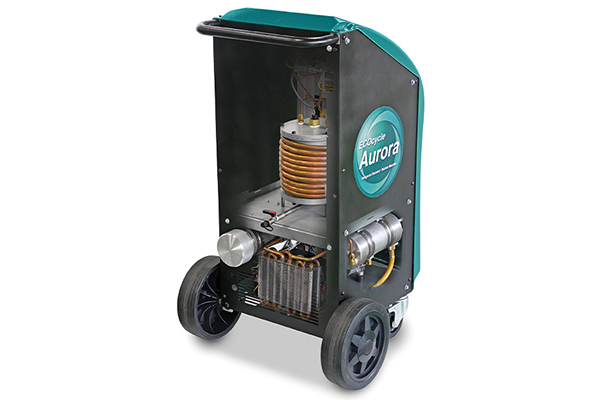

ECOcylce AURORAⅡ World's-first electrostatic separation technology
- PAT.P

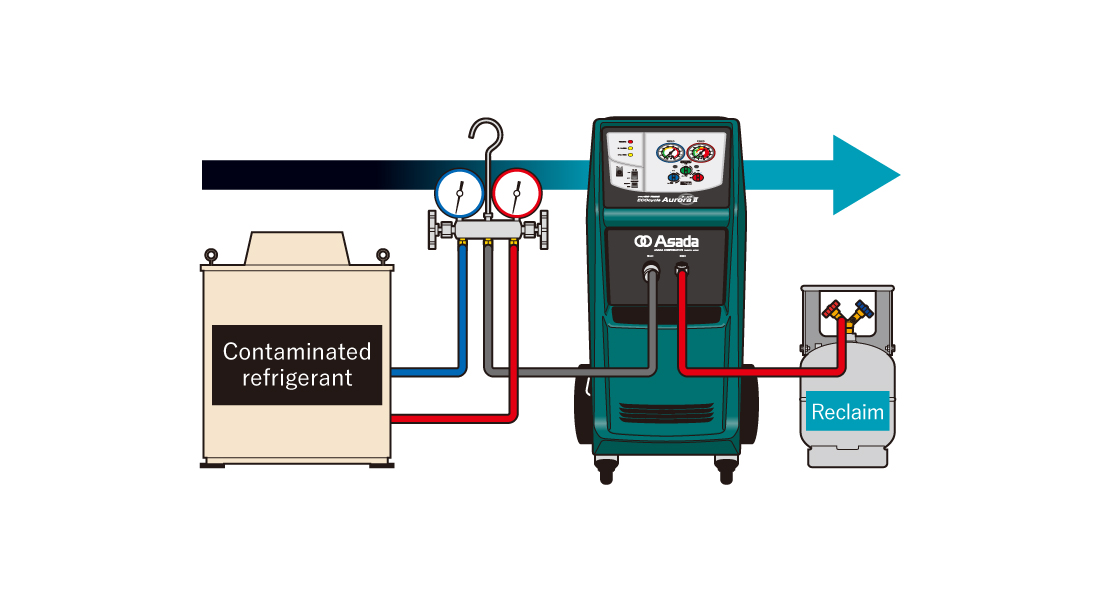

- Refrigerant recovery
- Refrigerant reclaim
- R410A liquid recovery & reclaim: 220g/min
- R22 liquid recovery・reclaim: 220g/min
High purity reclaim (99.9%) of used refrigerant by electrostatic separation technology (Applicable to R410A）
High purity reclaim but still portable
SPECIFICATIONS
| Item | ECOCYCLE AURORAⅡ |
|---|---|
| Code No. | AR023A |
| Applicable refrigerant (recovery & reclaim) | R12, R22, R32, R500, R502, R134a, R404A, R410A, R507A, R509A, R1234yf |
| Applicable refrigerant (recovery) | R22, R32, R134a, R404A, R407C, R410A, R1234yf etc. |
| Recovery method | Liquid recovery (Vapor recovery is also possible) |
| Reclaim method | Electrostatic separation method |
| Voltage | 220-240V |
| Compressor | 750W, oil-less |
| Oil separator | Heat exchange style, Capacity 2L |
| Weight | 60kg |
| Operating temperature | 5～35°C |
| Applicable cylinder | Float sensor： RECOVERY CYLINDER WITH FLOAT SENSOR （6L. 12L, 24L, 40L, 120L) Weighing: ROCEVERY CYLINDER WITHOUT FLOAT SENSOR(24L, 120L) |

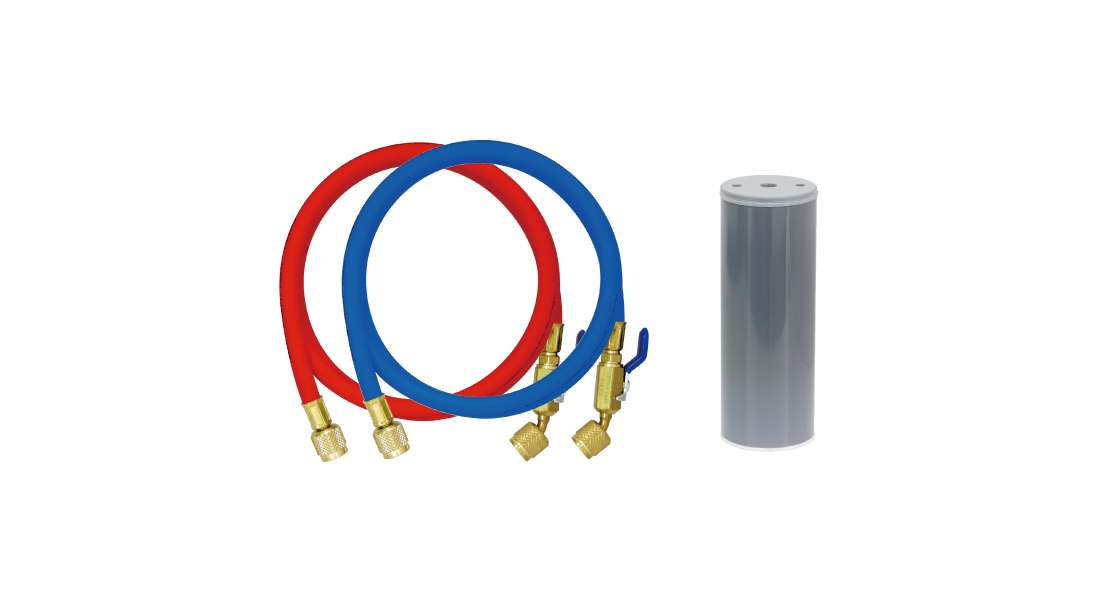

| Standard accessories | 1/4"CHARING HOSE183cm WITH BALL VALVE（red, blue） x each 1pce AR FILTER CORE, FILTER |
When reclaiming R32, ADAPTER 1/4" FEMALE X 5/16" MALE (Y06114K) is necessary.
Voltage made to order.
FEATURES
Patented technology
Electrostatic separation technology is a small device but its capacity is as equal to a huge reclaim plant system.

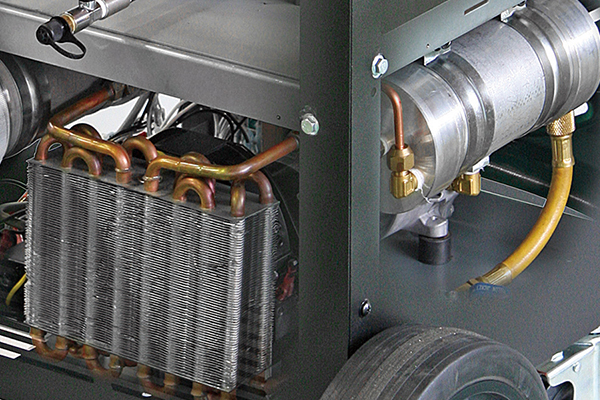

Remove moisture and oil
Large oil separator and filter-dryer are equipped.

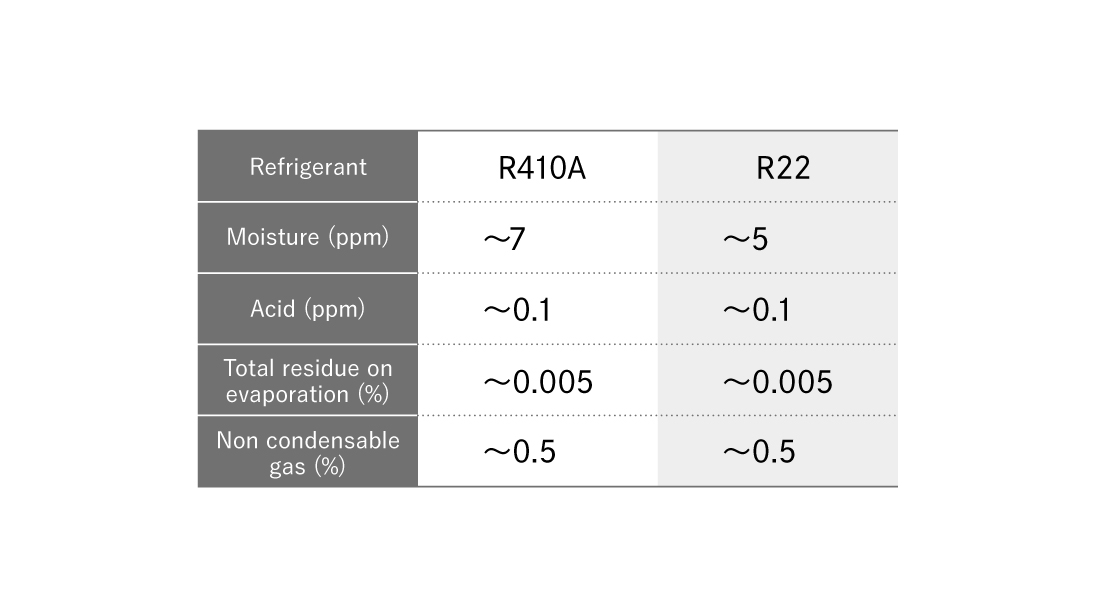

High purity reclaim (99.9%)
Applicable to R410A too
Applicable to 7 kinds of refrigerant (R12, R22, R32, R500, R502, R134a, R410A) for reclaim.

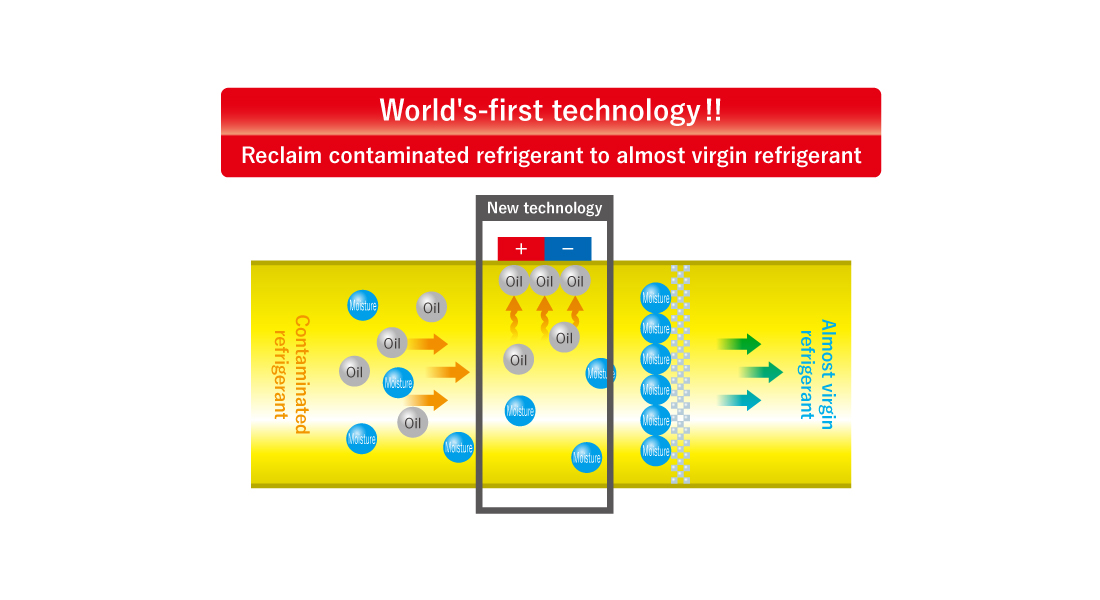

Electrostatic separation method removes moisture and oil
Impurities in refrigerant are charged by friction with needle valve, and these charged impurities are removed by the electrostatic precipitator. Moisture in the refrigerant which has no impurities is removed by filter-dryer and reclaim used refrigerant as almost virgin.
Small unit but high purity reclaim
Small unit but ensures high purity reclaim by adopting electrostatic separation method.
Applicable to mixed refrigerants
Possible to minimize a composition change in mixed refrigerants such as R410A, as it sucks liquid refrigerant directly and charges in liquid phase. ※Reclaiming R407C causes a composition change.
