HVAC TOOLS
REFRIGERANT RECOVERY & RECLAIM

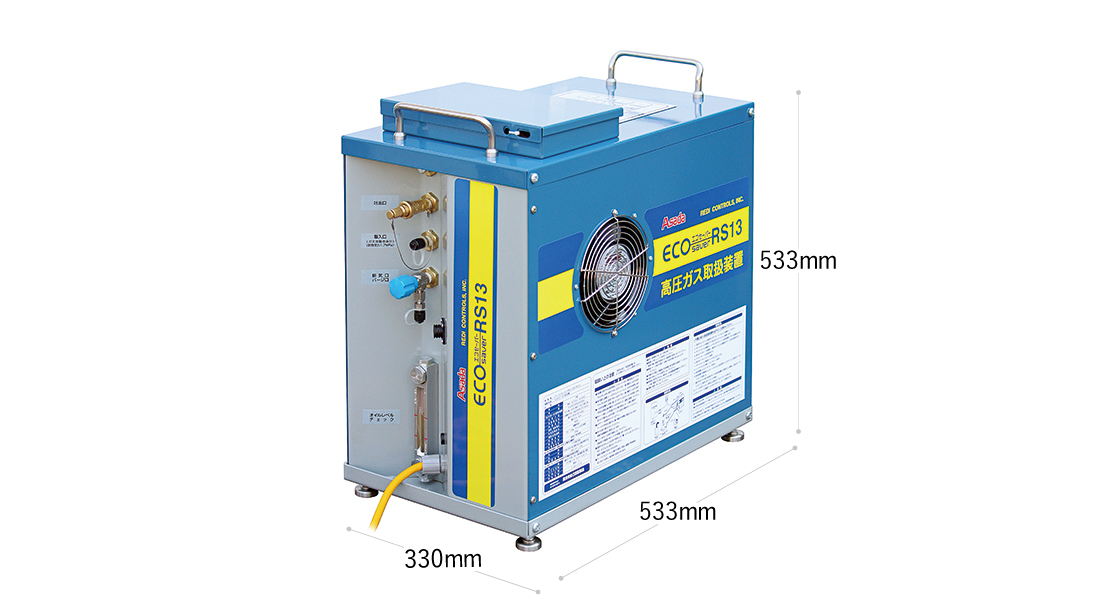

ECOsaver RS13
- PAT.P
- Made-to-order
- Vapor recovery: 130g/min
- Super-high pressure refrigerant
For recovery of super-high pressure refrigerant from environmental test device, super low temperature creating machine, snow making machine, etc
SPECIFICATIONS
| Item | ECOSAVER RS13 |
|---|---|
| Code No. | ESRS13 |
| Applicable refrigerant | R13, R23, R503, R508A, R14, R116, R13B1 |
| Recovery method | Compressed vapor 2-stage recovery method |
| Recovery rate | Vapor recovery: 130g/min |
| Voltage | 100V（50/60Hz）200V（50/60Hz） |
| Compressor | Multi-stage |
| Weight | 52kg |
| Operating temperature | 0～40°C |
| Ultimate Vacuum | 3 stage setting: －0MPa, －0.034MPa, －0.068MPa Max:－0.084MPa（－630mmHg） |
| Function | Recovery（simple recycling by filter dryer is possible）・Charging |
| Applicable cylinder | Designated cylinder for RS13 |
| Standard accessories | LIMIT SCALE LS－45RSⅡ, DOWN TRANCEFORMER, SUPER-HIGH PRESSURE STAINLESS STEEL HOSE, SAFETY CABLE, VALVE ADAPTER WITH QUICK CONNECTOR, 1/4"FLARE×VALVE ADAPTER, VALVE ADAPTER WITH SAFETY VALVE, W22×W26 SOCKET, GASKET(extra), 1/4"FLARE×W26 CYLINDER ADAPTER |
Recovery rate varies depending on a condition.
Vapor recovery rates are under JIS B8629 specifications standard.
