HVAC TOOLS
REFRIGERANT RECOVERY & RECLAIM

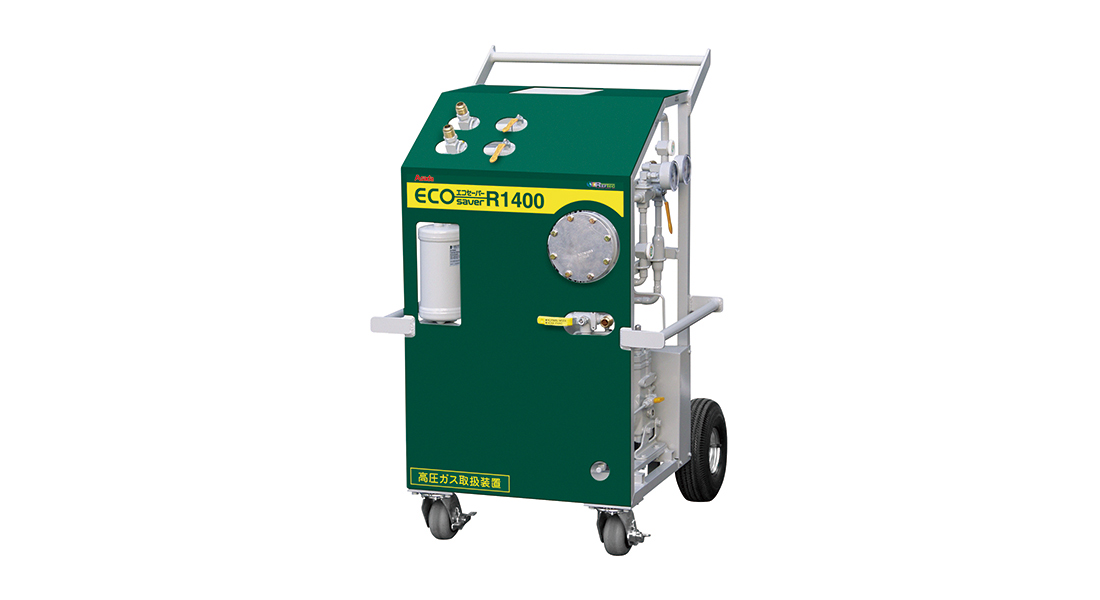

ECOsaver R1400
- Made-to-order
- High speed
- R22 vapor recovery 2,700g/min
- R22 push pull recovery 147,000g/min
For push pull recovery from a large system like A/C, Chiller
SPECIFICATIONS
| Item | ECOSAVER R1400 |
|---|---|
| Code No. | ES1403 |
| Applicable refrigerant | R12, R22, R500, R502, R134a, R404A, R407C, R407D, R422A, R422D, R507A, R509A, R115, R125, R218, R401A, R401B, R402A, R402B, R407A, R407B, R407E |
| Recovery method | Compressed vapor recovery method／Push-pull method |
| Recovery rate | R22 vapor recovery: 2,700g/min R22 push pull recovery: 147,000g/min |
| Voltage | three-phase 200V（50/60Hz） |
| Compressor | 2250W 2 piston open drive（oil in) |
| Weight | 124.7kg |
| Operating temperature | 0～40°C |
| Ultimate vacuum | Auto stop：－0.044MPa（－330mmHg） Manual stop：Max－0.098MPa（－735mmHg） |
| Applicable cylinder | Float sensor： RECOVERY CYLINDER WITH FLOAT SENSOR (120L) Weighing: RECOVERY CYLINDER WITHOUT FLOAT SENSOR (120L) |
| Standard accessories | 3/4"CHARGING HOSE 6m, 3/4"CHARGING HOSE 3m 2pcs, 3/4"BALL VALVE 4pcs, SAFETY CABLE, FILTER DRYER, ADAPTER FOR WATER COOLING CONDENSER 2pc, ADAPTER 3/4"FEMALE×1/4"MALE 3pcs ADAPTER 1/4"FEMALE×3/4"MALE 3pcs, 3/4" FLARE SWIVEL, R1400 FILTER 3/4"×3/4" |
