HVAC TOOLS
LEAK DETECTOR & LEAK PREVENTION

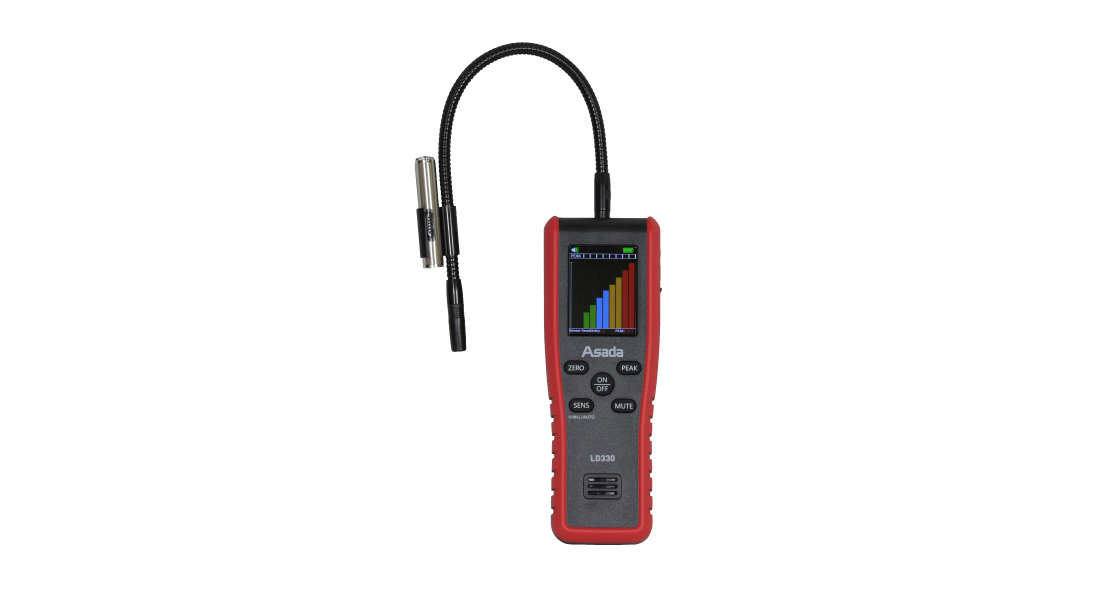

LEAK DETECTOR LD330 For refrigerant leak detection
- Sensitivity:3g/year
- NDIR type
- Auto sensitivity switching mode
- Gas suction type
- Min. working temperature: -10℃
- Zero Reset Mode
- Extendable probe
- LED/UV Light
Automatic sensitivity switching mode and peak hold mode inherited from the previous model.
Improved visibility with a digital LCD display.
Newly added manual zero reset mode for improved operability.
High sensitivity of 3 g/year enables detection of even minute leaks.

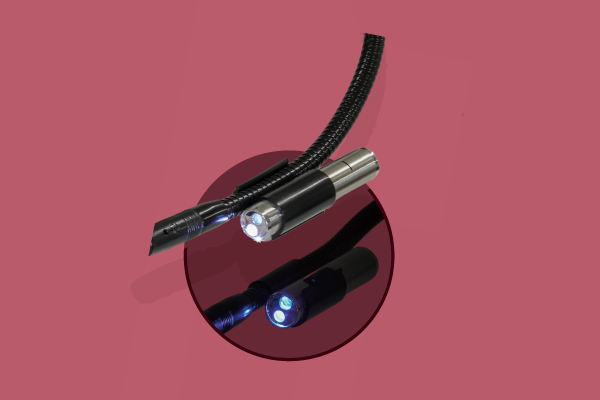

Equipped with an external LED light. Switchable to UV light for detecting fluorescent dye.
Up to approximately 12 hours of continuous operation for extended working time.
Operating temperature range: -10°C to 52°C, suitable for low-temperature environments.
Optional Accessory: Extention Probe (310mm) Code No.LD063 (Do not connect more than two extension probes.)
SPECIFICATIONS
| Item | LEAK DETECTOR LD330 |
|---|---|
| Code No. | LD330E |
| Applicable refrigerant | HFC/HCFC/CFC/HFO |
| Detection method | Infrared type |
| Sensitivity | High：3g／year, Medium：7g／year, Low：14g／year |
| Working temperature range | -10℃～52℃ |
| Storage temperature range | -20℃～60℃ |
| Working/storage humidity range | Less than 90%RH |
| Power | Lithium battery |
| Battery life | 12 hours (continuous operation) |
| Auto power off | 10 minutes |
| Probe length | 340 mm |

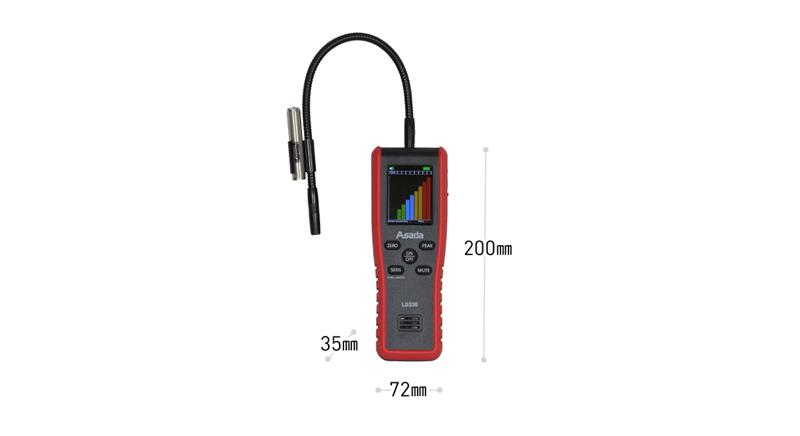

| Size:(L x W x H) | 72 x 35 x 200 (mm) |
| Weight | 464g (with battery) |
| Standard Accessories | Replacement filter (5pcs), LED/UV light, Light holder, Carring case, AC adapter (DC5V/1A), USB cable (1.5m) |
FEATURES
Sensitivity 3g/year
High sensitivity and less misdetection. Long life NDIR type.
Auto sensitivity switching mode
Depending on the amount of leakage, 3-stage-sensitivity switches automatically. It can always detect with optimal sensitivity.
LED lighting function
LED light at the probe tip flushes once detect leakage.
Manual Reset Mode
In this mode, the current ambient gas concentration is set as the zero point.
