LEAK DETECTOR LD316 For refrigerant leak detection

Item	LEAK DETECTOR LD316
Code No.	LD316E
Applicable refrigerant	R410A, R407C, R404A, R507A, R134a, R12, R22, R500, R502, HFO1234yf, HFO1234ze, HFO1233zd, R32, R245fa, etc.
Detection method	Infrared type
Gas introduction method	Gas suction system
Sensitivity	High：4g／year, Medium：7g／year, Low：14g／year, CM mode：3g／year
Power	Rechargeable lithium battery
Time	Reaction time：less than 1sec／Warm up： about 30sec
Battery life	0～50°C：continuous operation 7 hours
Detection method	Buzzer & 9 staged LED

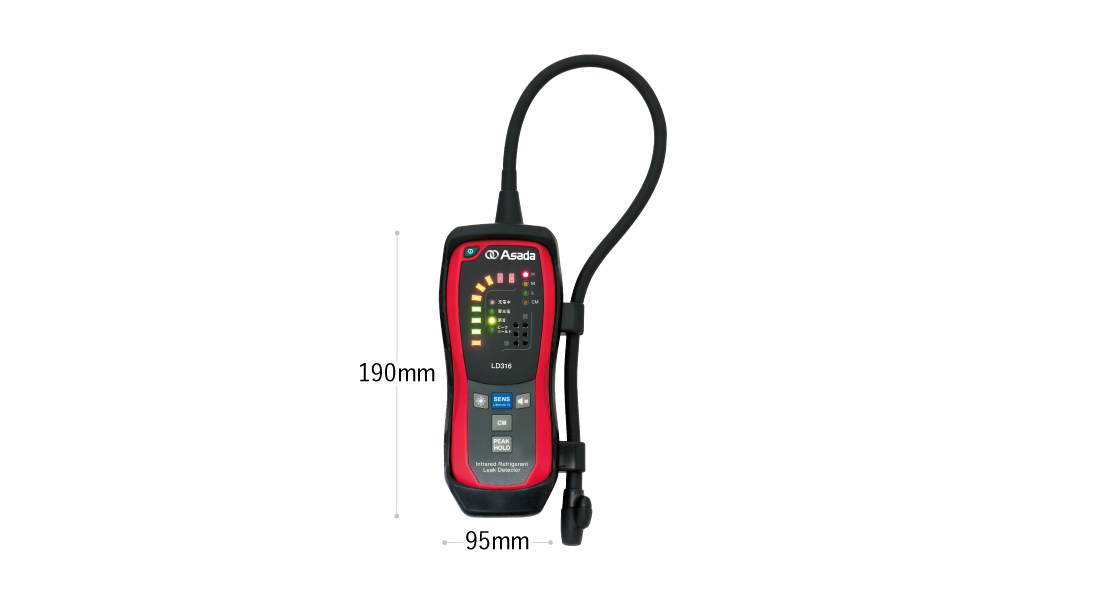

Dimensions	L：95×W：48×H：190mm
Weight	495g（including battery）
Temperature range	Operation：0～50°C／Storage：–10～60°C

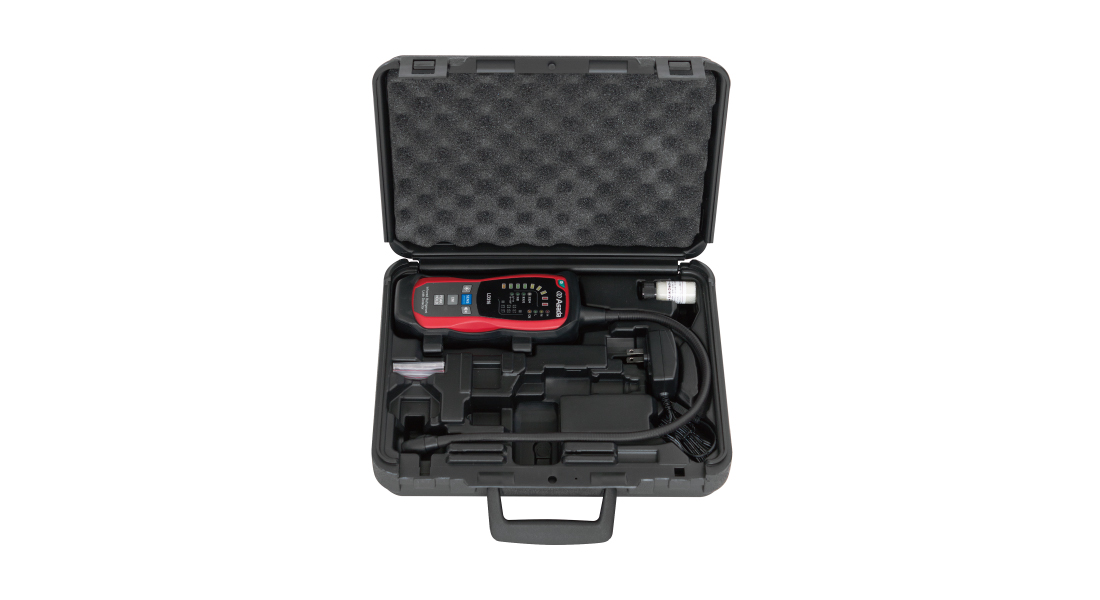

Standard accessories	LEAK CHECK BOTTLE, SPARE FILTER, AC ADAPTER, BODY COVER, CASE

MAGNET STRAP (Code no.LD029) can be attached to the body.

Sensitivity 3g/year
High sensitivity and less misdetection. Long life NDIR type.
Auto sensitivity switching mode
Depending on the amount of leakage, 3-stage-sensitivity switches automatically. It can always detect with optimal sensitivity.
LED light on the probe tip
LED light on the probe tip helps detection in insides of systems and dark places such as ceilings and basements.
LED lighting function
LED light at the probe tip flushes once detect leakage.
Misdetection prevention device
Prevent misdetections by sudden moves.
